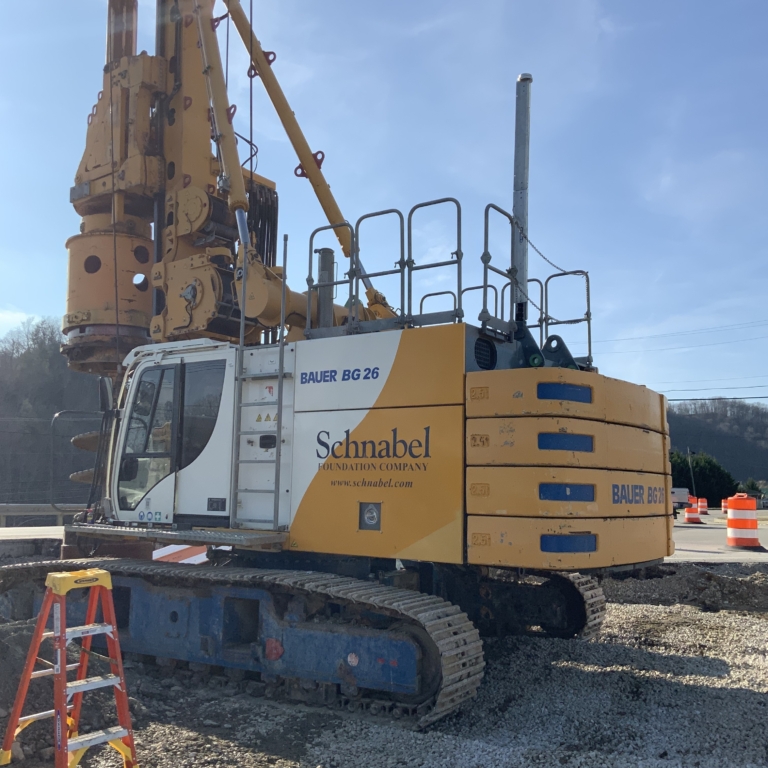

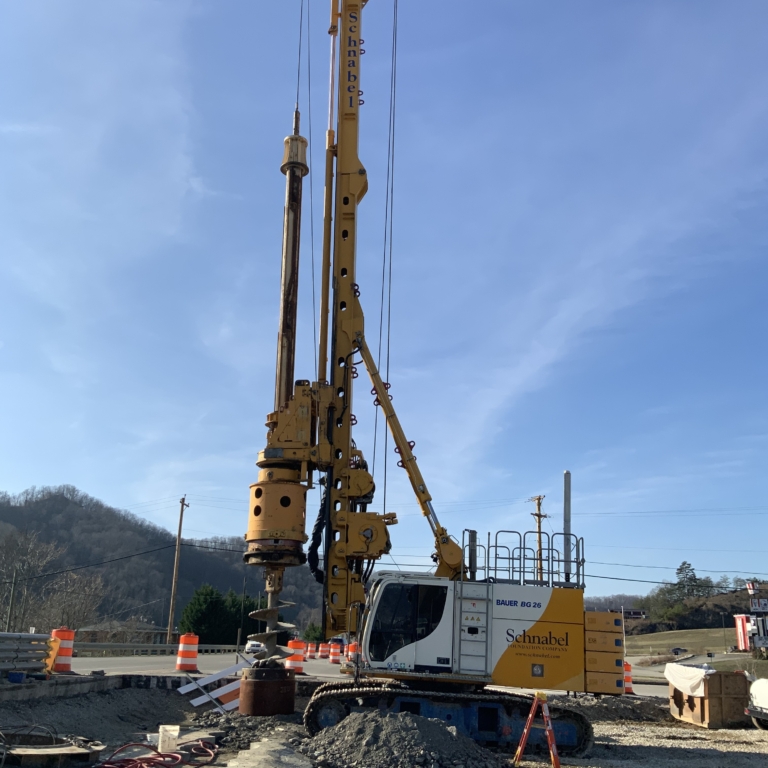

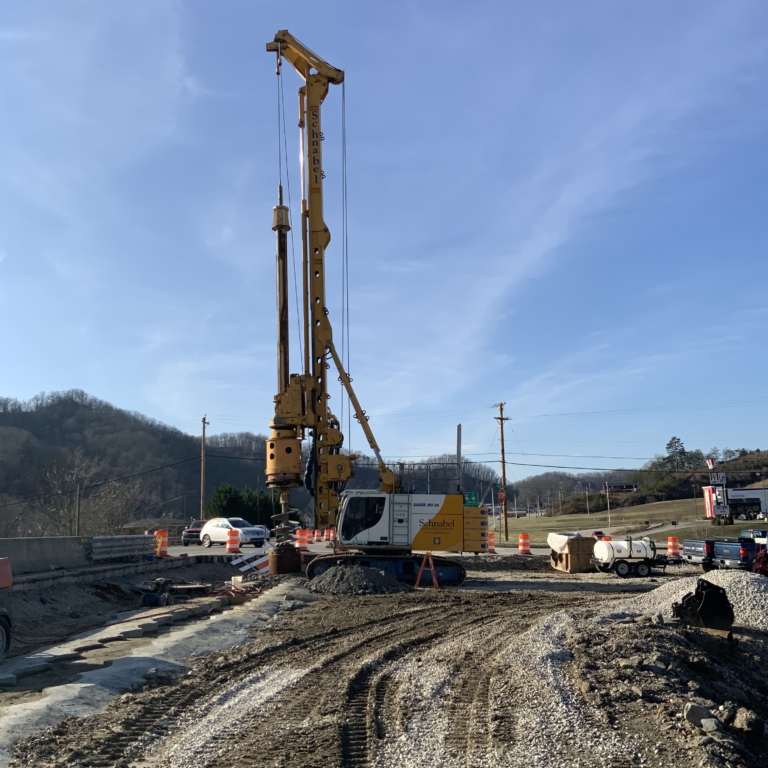

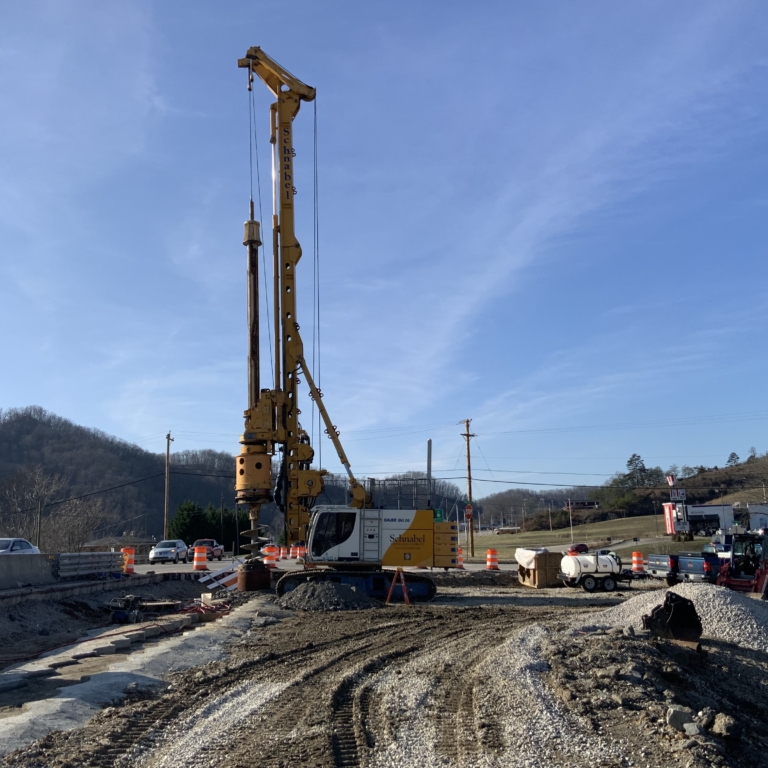

BG26VL
Overview

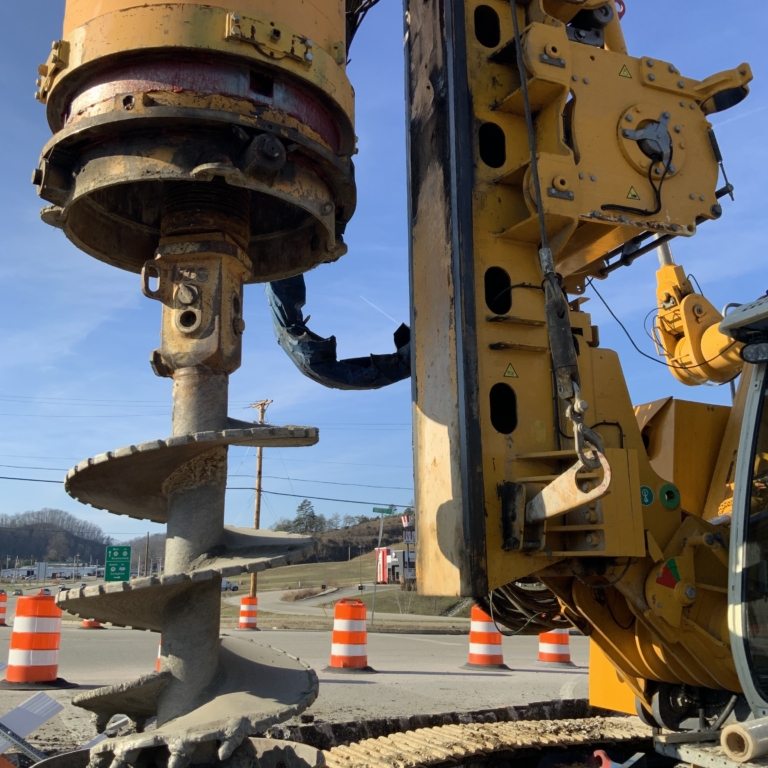

Includes: Kelly Bar KR260/394/3/27
V Style Kinematic System
Caterpillar C9 280kW Diesel Engine

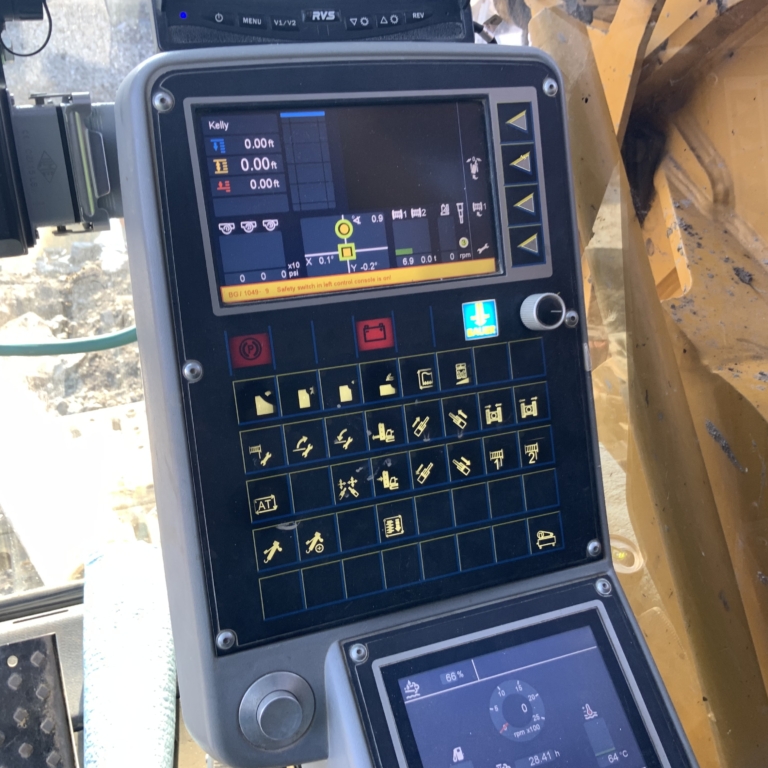

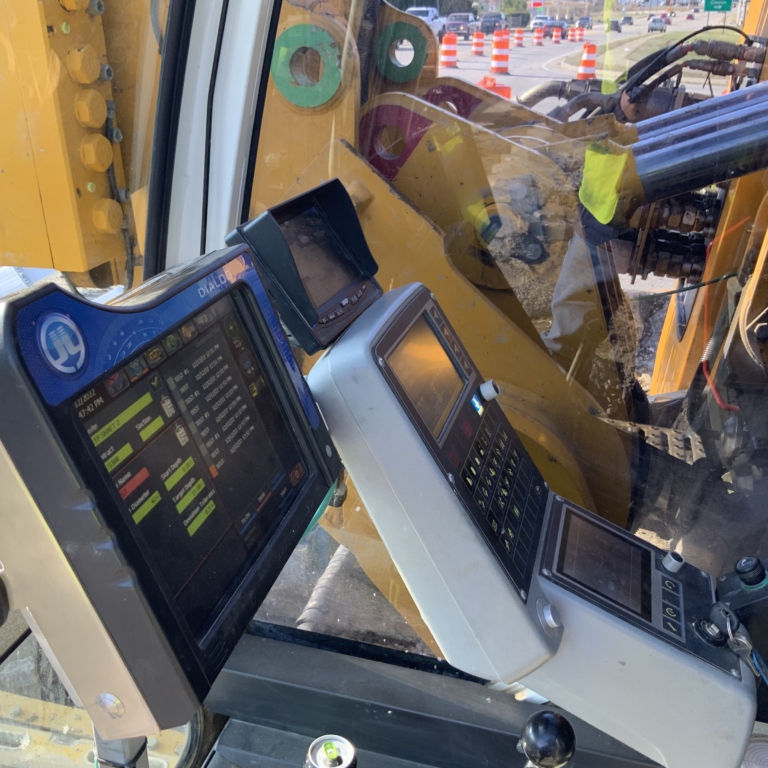

BTronic on board with touch screen
Crowd winch system with pull down 270 kN and pull up 210 kN
Max. pile diameter 1650 mm (64.9")
Operating weight 81t

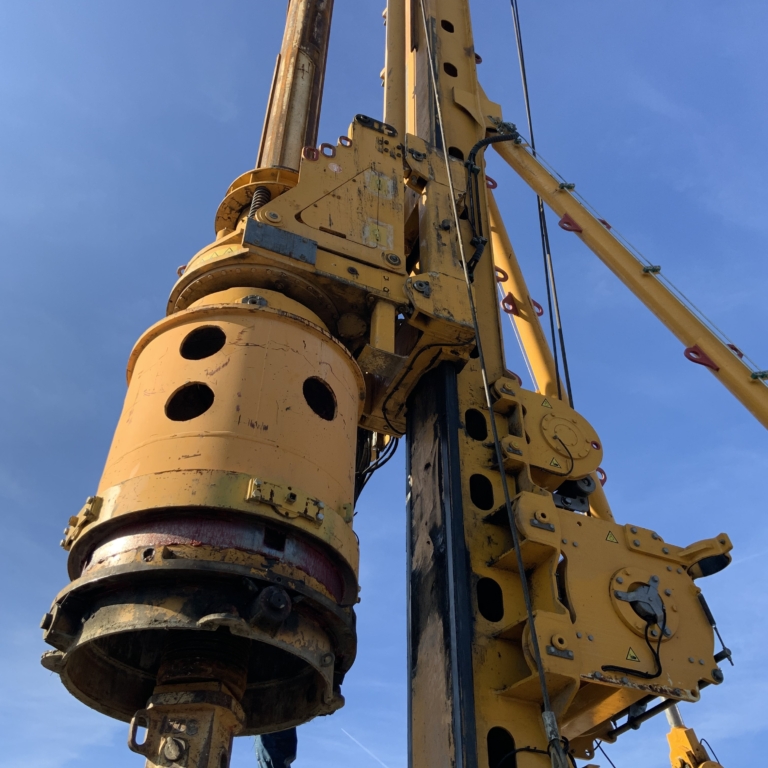

Max rotary torque 264 kNm
Rated torque 264 kNm
Main winch 225 kN
Kelly bar 3 x 9 m with max depth 27 m (88.58’)
Kelly bar stub 200 mm (7.87")
Service winch 80 kN
7.5t Counterweight
*Machine is on consignment from Schnabel
