Overview

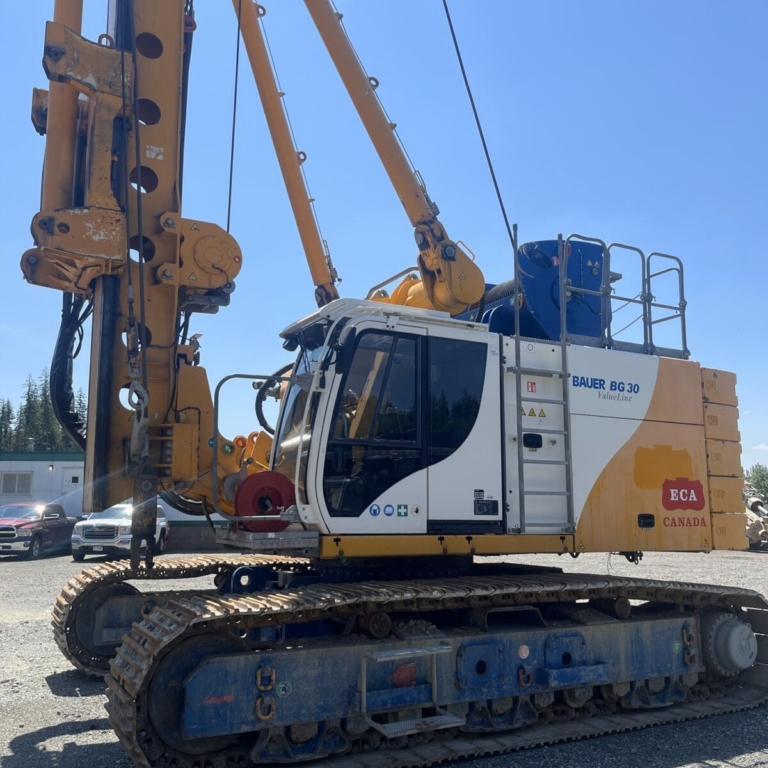

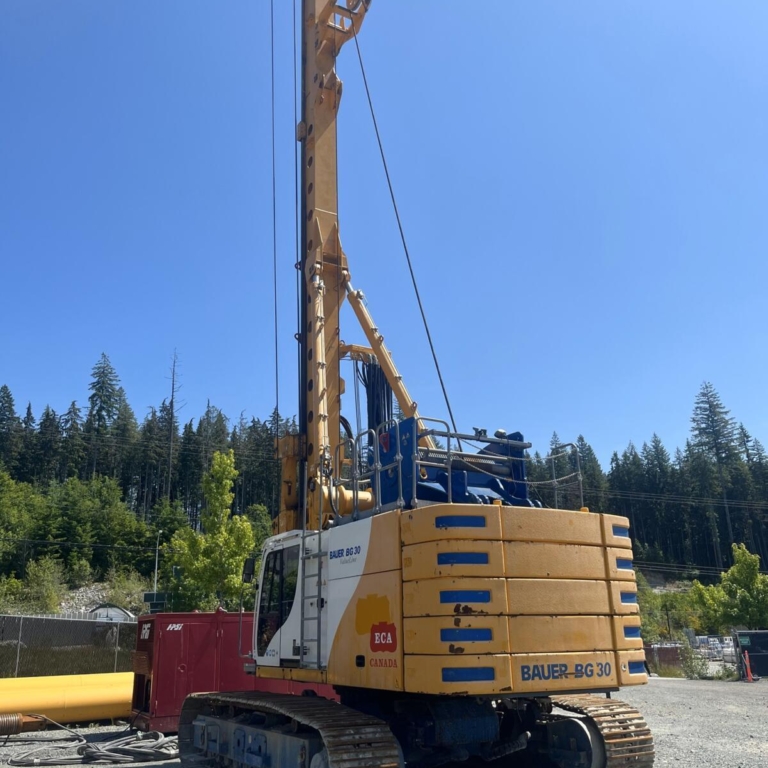

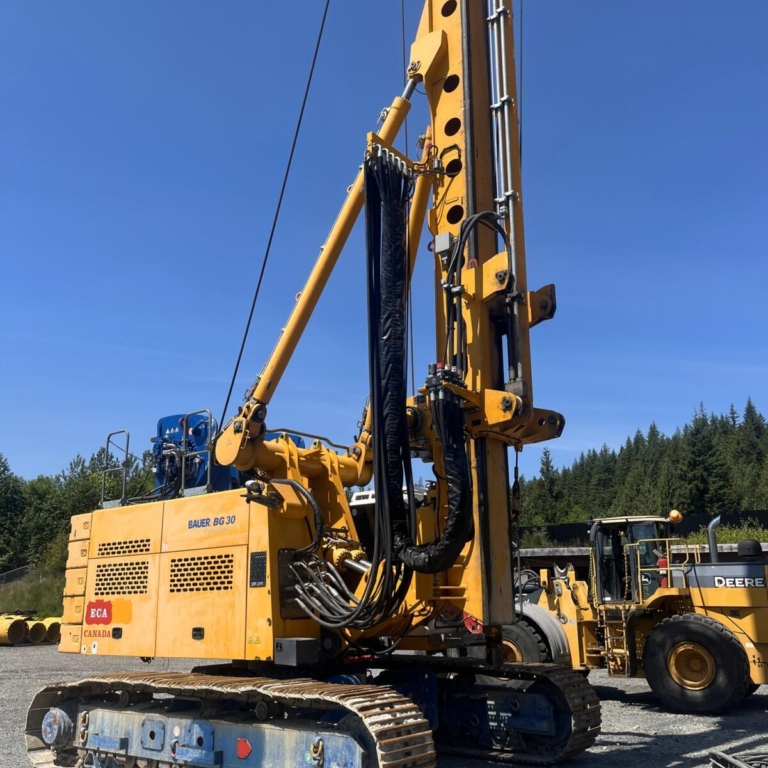

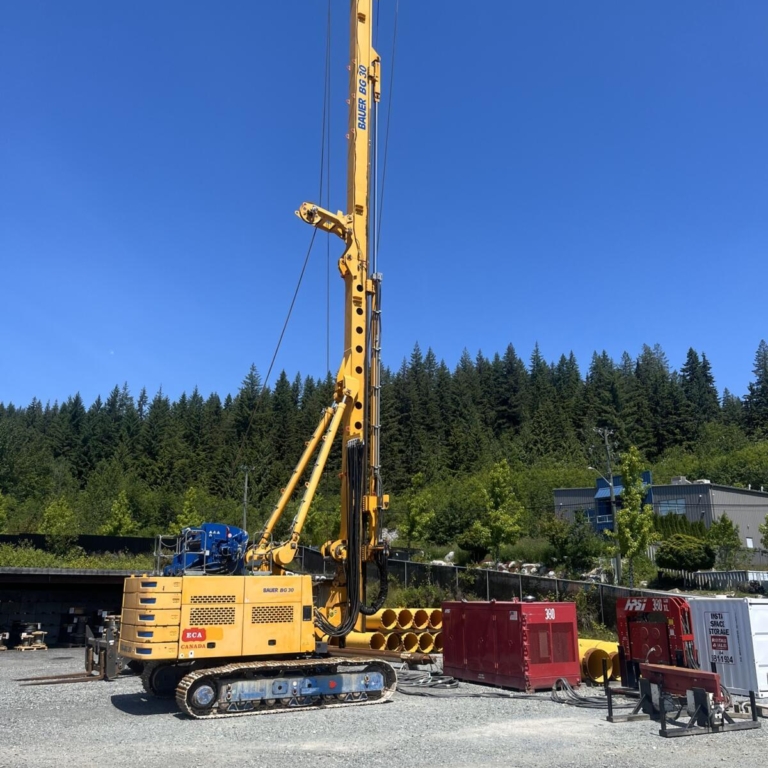

Bauer BG30 Value Line serial number 5055. This crowd cylinder machine with V-style kinematics is perfect for kelly drilling cased or uncased holes. It is complete with many of the great automatic control and assistant systems BAUER has developed. The rig is built on a BT 80 Base Carrier with a 400 hp (298 kW) CAT C 9.3 Tier 4f engine and sits on a UW 100 Undercarriage.

Kelly Drilling Capabilities:

  • BK 400/394/3/33
  • Max Drill Depth 33 m / 108.26 ft
  • Drill axis 1350mm
  • Crowd cylinder 8.5 m stroke
  • Crowd force push/pull (effective)
  • 200 kN (44,962 lbf) /
  • 490 kN (110,156 lbf)

OPTIONS:

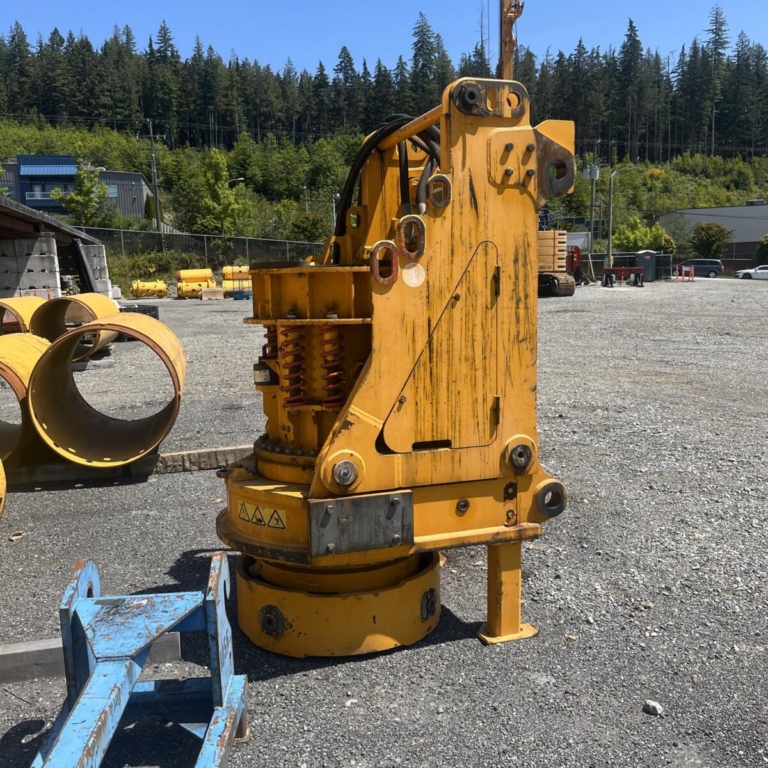

  • Pre-Equipped with Casing Oscillator
  • Hydraulics and Steelworks

Location: Vancouver, BC

Serial Number 5055
Year of Manufacture 2019
Rig Hours 3,450
Torque KDK 300 S (301 kNm/222,000 ft-lb)

$1,495,000 CAD
